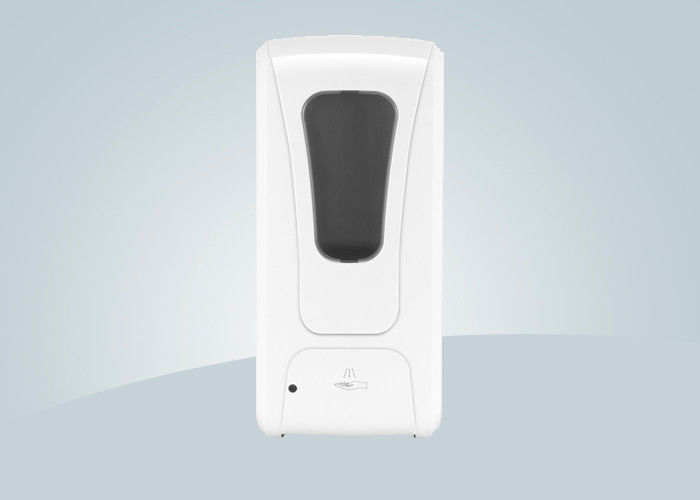

Infrared Sensor 1000ml Touch Free Auto Alcohol Gel Dispensers

Infrared Sensor 1000ml Touch Free Auto Alcohol Gel Dispensers

Specification

Features:

1. Smart intelligent electronics skill being adopted ensure sits high performance. No contact, to effectively prevent cross-infection of bacteria, prevent human damage & waste.
2. Because of advanced pump fit to all kinds of liquid can be applicable, like shampoo, liquid soap, sanitizer, etc.
3. Power consumption is very low, battery life reaches more than 100,000 cycles.
4. Flashing LED indicates low battery.
5. There is a device for protect from stealing off.
6. Primary application: Public Place, school, commercial center, health care, institutions, hospitals, office, hotel, food factory & etc.

Installation

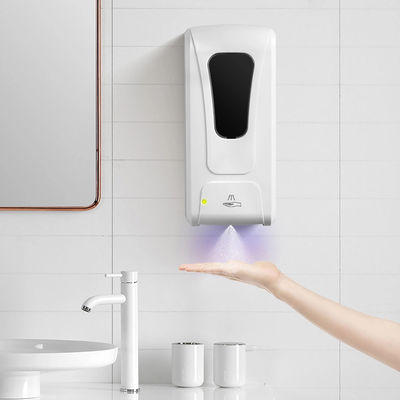

Do not install in areas or direct sunlight, make sure there are not white surface or any other strong reflectors within 30cm below. Mount the dispenser to the wall by using the enclosed screws and wall plugs. Make sure the wall surface is cleaned and in good condition to ensure proper mating of the dispenser to the wall. Install six (6) Alkaline “C”
Cell batteries, 1.5V into the battery chamber which is located on the back of control box, replace the control box by sliding down. Must be flush to bottom.

Operation

Refillable bottle: To fill dispenser, remove the lid and fill with liquid or gel.

Disposable bag: To fill dispenser, fill with liquid or gel through the hole which is on the bag, then insert nozzle. Please fill the nozzle completely with liquid or gel (Press the nozzle & make air discharged) before installing the new bag in the dispenser to work, the drop or spray function could be more efficiency.

Open front of box to install liquid bag. Pull the valve hose out and down, place the liquid bag in box on top of the control box, place the hose in the channel, make sure the upper collar is beneath the upper notch and the lower collar fits into the lower notch.

Dispenses liquid or gel of viscosities ranging from 1,000-5,000 cps. To activate the dispenser, place hand under spout for approximately one second. Sensing range comes at factory setting of 4-8cm. The sensing range set by the factory is recommended for optimal performance. Window indicates when fill is required. The locked, hinged housing opens for re-filling only with the special key provided. Requires six (6) Alkaline “C” Cell batteries, 1.5V (not included). Green indicator light signals “IN USE”. Flashing red light signals “LOW BATTERY”. CE certified.

FAQ

Q1.: Can you produce the hand sanitizer dispenser as per our design?
A1.: Yes, both OEM & ODM service are available.

Q2.: Can the soap dispenser be printed with our logo?
A2.: yes, for sure, just send us the design & advise the pantone number, thanks.

Q3.: Can you send me the sample to see the product quality?
A3.: Yes, of course.

Q4.: Are you a cleaning products manufacturer or trade company?
A4.: We are manufacturer, and have specialized in hand hygiene products for more than 10 years.

Q5.: Can I place a trial order if the quantity is less than MOQ?
A5: For the first trial order, yes, we can make an exception for you, if there's any assistance needed on the marketing, pls do feel free to us at any time.
